For Content Producers

Current video encoding specs — SaskTel Centre

Producing a video board ad or game graphics for SaskTel Centre? Use the specs below. Questions? Get in touch.

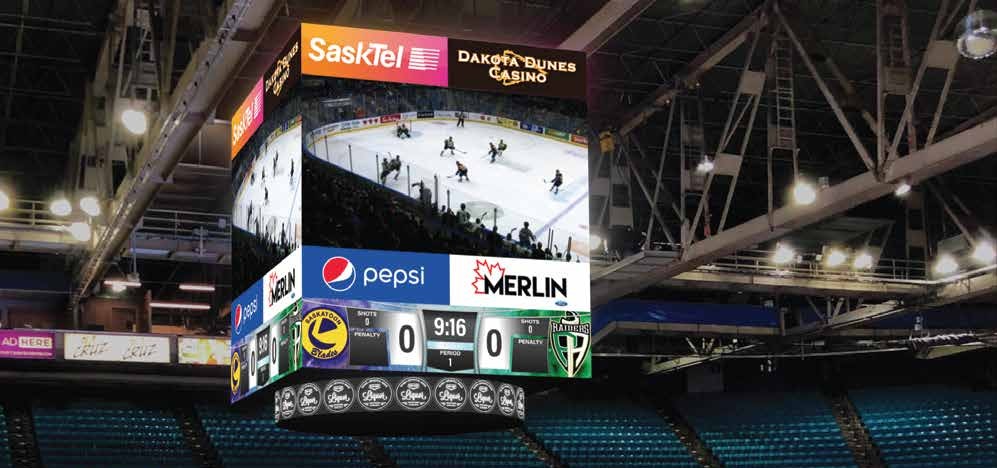

Rendering of the SaskTel Centre score clock
The SaskTel Centre score clock
Score clock zone dimensions: ad boards 1920×324 (960×324 halves), main screen 1920×1080, scorebar 1920×432, full takeover 1920×2160
Clock face zones — full TakeOver is 1920 × 2160

Score Clock — Main Video Screens

Size
1920 × 1080 (16:9)
Frame rate
59.94 fps
Audio
AAC, 192 kbps, 48,000 Hz, stereo
Encoding
MP4 (H.264), 3–8 Mb/sec
Still images
JPG, or PNG if transparency is needed
Use a −10% border when content is also being displayed on in-house TV screens

Score Clock — Ad Boards

Size
1920 × 324 (upper and lower)
Half-width segments
960 × 324

Score Clock — Scorebar

Size
1920 × 432

Score Clock — Full TakeOver

Size
1920 × 2160
One canvas spanning the whole clock face: upper ad board + main screen + lower ad board + scorebar

Score Clock — Collar

Full size
4368 × 168
Quarter-width segment
1092 × 168

Ribbon Boards

Size
6080 × 128

Concourse & Lobby Signage (Upcoming Event Graphics)

Size
1920 × 1080 (square pixels) — 1080p HD
Frame rate
59.94 fps
Audio
N/A
Encoding
MP4 (H.264)
Still images
PNG or JPG
Ribbon boards during a game at SaskTel Centre
Ribbon boards in action
Collar 4368×168 (quarter-width 1092×168) and ribbon boards 6080×128
Collar and ribbon board dimensions

Preferred file formats

Static graphics
JPG
Static graphics with alpha (transparency)
PNG
Video content
MP4 — H.264 codec
